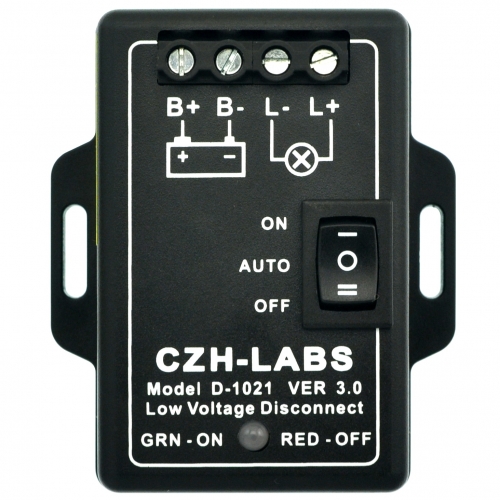

CZH-LABS 12 OR 24 VOLT 30 AMP LOW VOLTAGE DISCONNECT
1, To protect electronics from damaging low voltages and prevent a deep discharge of a battery during an extended power outage, the LVD module will automatically disconnect the battery when the voltage falls below the user adjustable cutoff voltage. When power is restored the Smart Switch will automatically reconnect the battery, thereby protecting the battery from total discharge (helping to prolong the life of the battery). Applications for Solar systems, Alarm systems, UPS systems, Mobile systems, or any application where you need to protect the battery from total discharge.
2, Programmable voltage setting for Disconnect and Reconnect (rocker switch set to AUTO). With emergency ON or OFF function, if you want switch output to be immediate and remain ON or OFF, you can set rocker switch to ON or OFF.
3, Set rocker switch to AUTO, when the battery voltage drops to less than or equal to the Disconnect Value and continuously held for 5 seconds, load switch will turn OFF. When the battery voltage rises to greater than or equal to the Reconnect Value and continuously held for 5 seconds, load switch will return to ON state. This will better prevent malfunction.
4, Based on Microcontroller and MOSFET (on status resistance < 0.003 ohm), more precise voltage, smart and long life switch output. Green-red dual color LED indication for output switch ON and OFF.
$26 POSTPAID WORLDWIDE IF ORDERED WITH PUMP.
